Tekin TT2346 Redline T8 GEN3 4038 1/8 Truggy Competition Brushless Motor (2000kV)

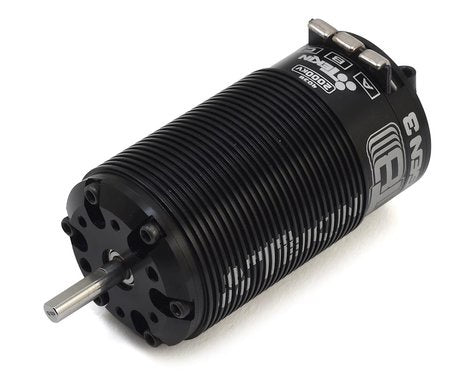

This is the Tekin Redline T8 GEN3 4038 Can, 2000kv Brushless Sensored Motor, made specifically for 1/8 Truggy use. Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, updated stack features and lower resistance, the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 (TEKTT2302) utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range.

Features:

• CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
• Matte Anodized for Maximum Corrosion Resistance
• ​Sensored and Sensorless Operation
• ​Low Resistance HD Solder Tabs
• ​Rebuildable Design
• ​Solderless Sensor PCB Replacement
• ​4-Pole Neodymium Sintered Magnet
• ​Dual-Plug Sensor Wire Harness
• ​ABEC5 Precision High Speed Oversized Bearings
• ​Precision Engineered for Maximum Energy Conversion
• ​Designed to be paired with the RX8 GEN3 ESC
• ​ROAR Approved
• Recommended for 1/8 truggy and 1/8 monster truck applications

Specifications:

• Input Voltage: (recommended kV for each popular voltage)
• 4S: 2250kV / 2000kV
• 5S: 1700kV / 1550kV
• 6S: 1350kv
• Weight: 368g / 13oz
• Shaft Dimensions: 5mm (.125") x 19mm
• Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
• Motor Length: 77mm / 3.03"
• Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
• Rotor Size: 18.5mm
• Rebuildable: Yes
