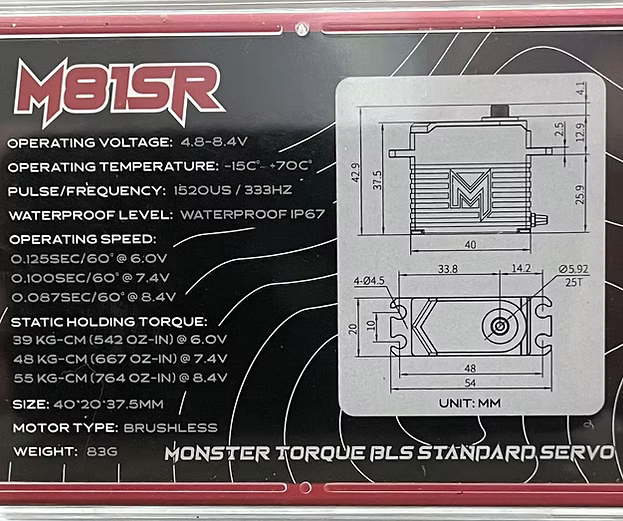

M81SR Mach-1 Servo (25 T Spline)

Working volatges:

4.8-8.4V

Speed:

• 0.125sec/60° @ 4.8V
• 0.105sec/60° @ 6.0V
• 0.092sec/60° @ 7.4V
• 0.082sec/60° @ 8.4V

Stall Torque:

• 36 kg-cm (500 oz-in) @ 4.8V
• 43 kg-cm (597 oz-in) @ 6.0V
• 48 kg-cm (667 oz-in) @ 7.4V
• 55 kg-cm (750 oz-in) @ 8.4V

Gears: Hardened Stainless Steel

Motor: 4-Poles Brushless Motor

Size: 40*20*38mm (1.57 x 0.78 x 1.49 in)

Weight: 85g

Connector Wire: TYU 300mm / 22AWG

After more than 6 months of development and testing we are excited to launch our latest servo, the M1 SR SERIES 55KG digital programmable servo.

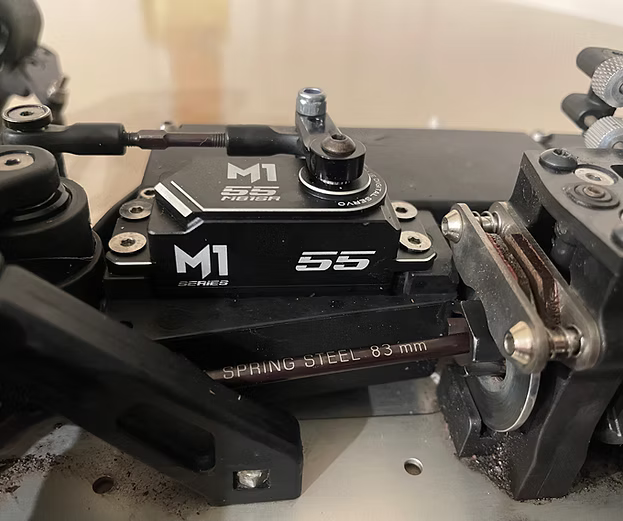

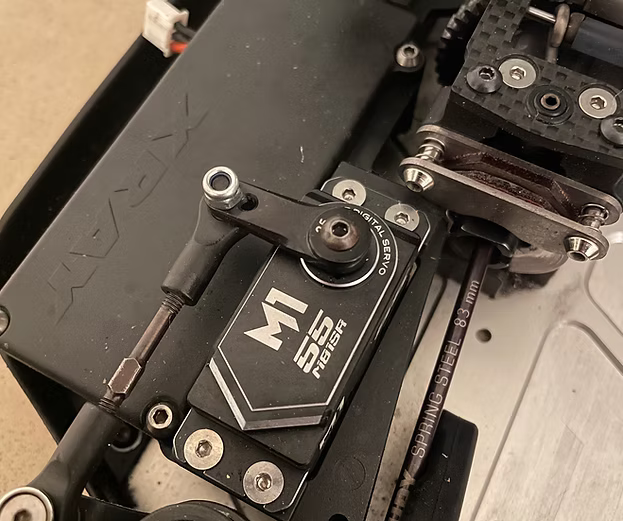

Succesfully proven across the globe in 1:8 scale electric and nitro buggy and truggy at some of the largest events in the world as:

• 2024 Dirt Nitro Challenege.

• 2024 Psycho Nitro Blast.

• 2024 Silverstate.

• 2024 RCRA Queensland State Titles.

• 2024 Philippines Masters.

• And many many more regional events across Australia and the USA!

We wanted to make something special, we updated the design and the materials used including:

• New hardened stainless steel gears matched to a new hardened retaining pin with reinforced housing in the servo case.

• Bearings, the new design now utilises 4 dustproof ball bearings,

• A new high torque 4-pole brushless motor, increasing the torque and speed. We have updated the case and motor housing now encorporating all alloy 3 piece construction elimates flex and any side sway spline movement.

• An updated logic board, being Mach-1 its programmable!

Of course we kept our precise magnetic encoder which allows the servo run in very humid conditions.

Feature

• Programmable high voltage Digital Servo

• Beautifully designed CNC machined alloy case

• Hardened Stainless Steel Gears with reinforced pin.

• New Ultra Strong 55KG 4-Pole Brushless Motor

• Four Dust Resistant Bearings

• Reinforced Pin Shaft and Structure

• 2S LiPo High Voltage Capable

• 25T Output Spline

• IP67 RATED Waterproof

Designed to last, engineered to perform - race proven.
