Includes:

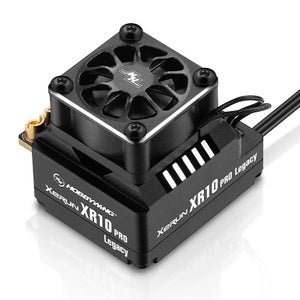

- (1) HOBBYWING ESC
- Factory Decals and Accessories
- (1) HOBBYWING ESC
- Factory Decals and Accessories
Features:
- 9 select-to-use profiles applicable to all 1/10th RC car racing.
- Separate programming port to power an external fan or connect an LCD Program Box Pro or OTA Programmer to the ESC.
- Variable frequency regulation of PWM and brake frequencies allows users to precisely regulate the driving and braking forces of the motors.
- Softening function (innovative by HOBBYWING) for power delivery tuning and better driving efficiency.
- Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
- Data logging function to view various running data on the HW LINK app using the OTA Bluetooth module.
- Firmware upgrade via Hobbywing LCD Program Box Pro or OTA Programmer (item sold separately).
Specifications:
- Cont./Peak Current: 150A/1000A
- Applications: 1/10 Touring car & Buggy racing, 1/10 Drift, F1, Rally
- Motor Limit: Touring Car: >4.5T, Buggy: >5.5T, 3650 (540) size 2-pole motor
- LiPo Cells: 2S LiPo (Only 2S)
- BEC Output: 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode)
- Cooling Fan: Powered by the stable BEC voltage
- Size: 37.7x37.0x33.2mm (w/Fan & Fan Shroud)
- Weight: 94.2g (w/Wires)
- Programming Port: Independent programming interface
- Reverse Polarity Protection: Yes
|
|
